MRL-6NSP

Car Speaker > 6.5inch > MRL-6NSP

MRL-6NSP

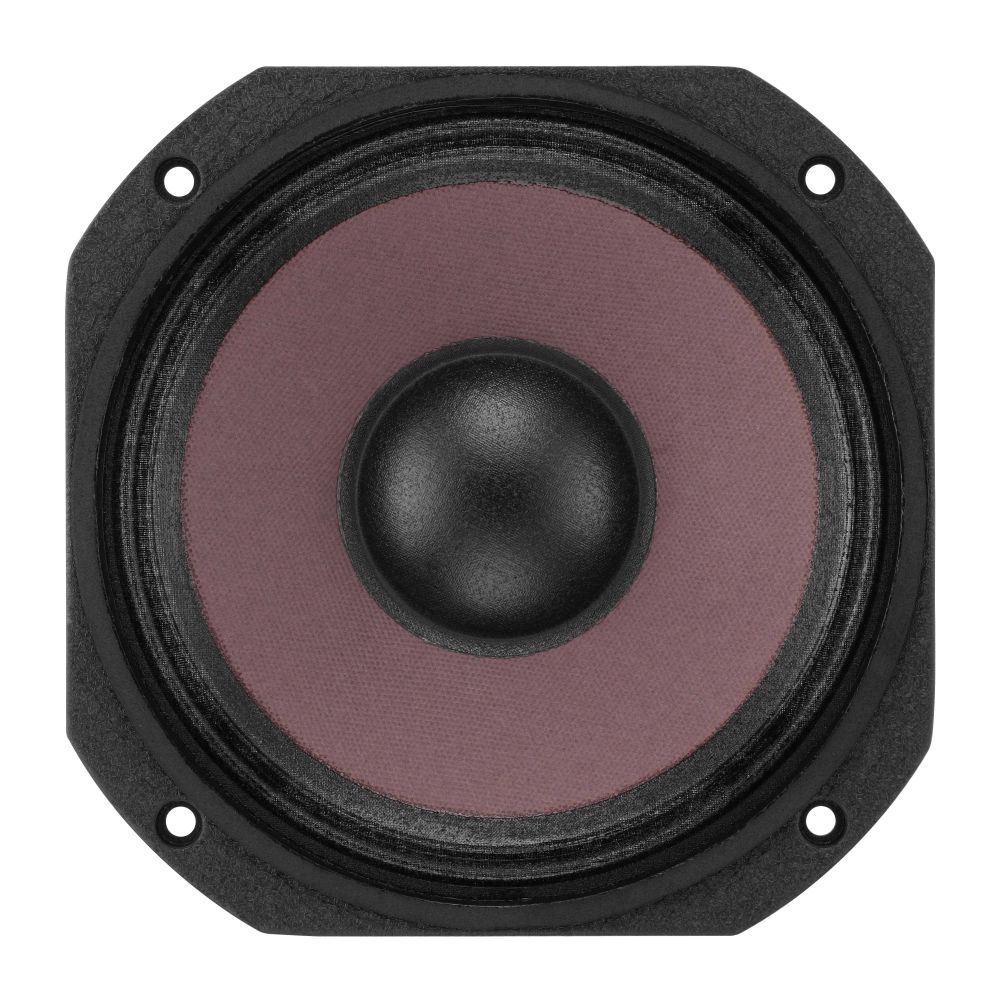

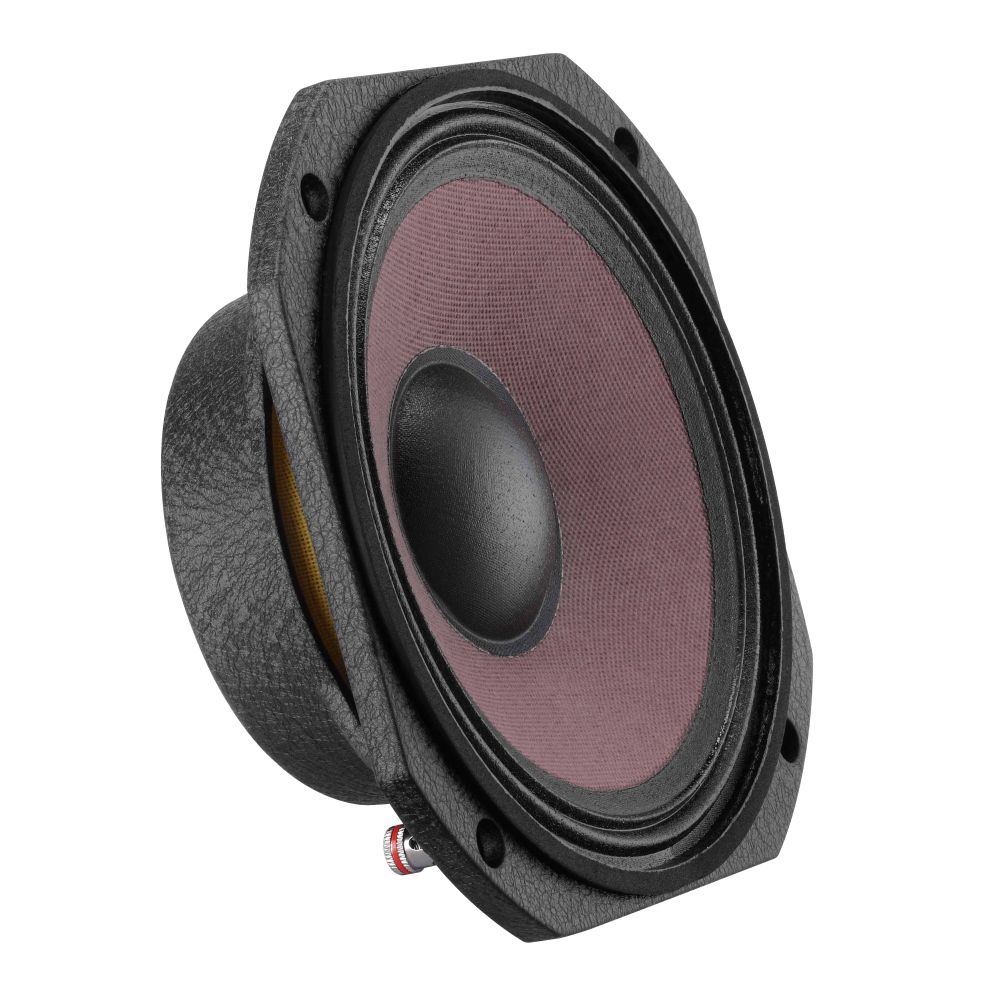

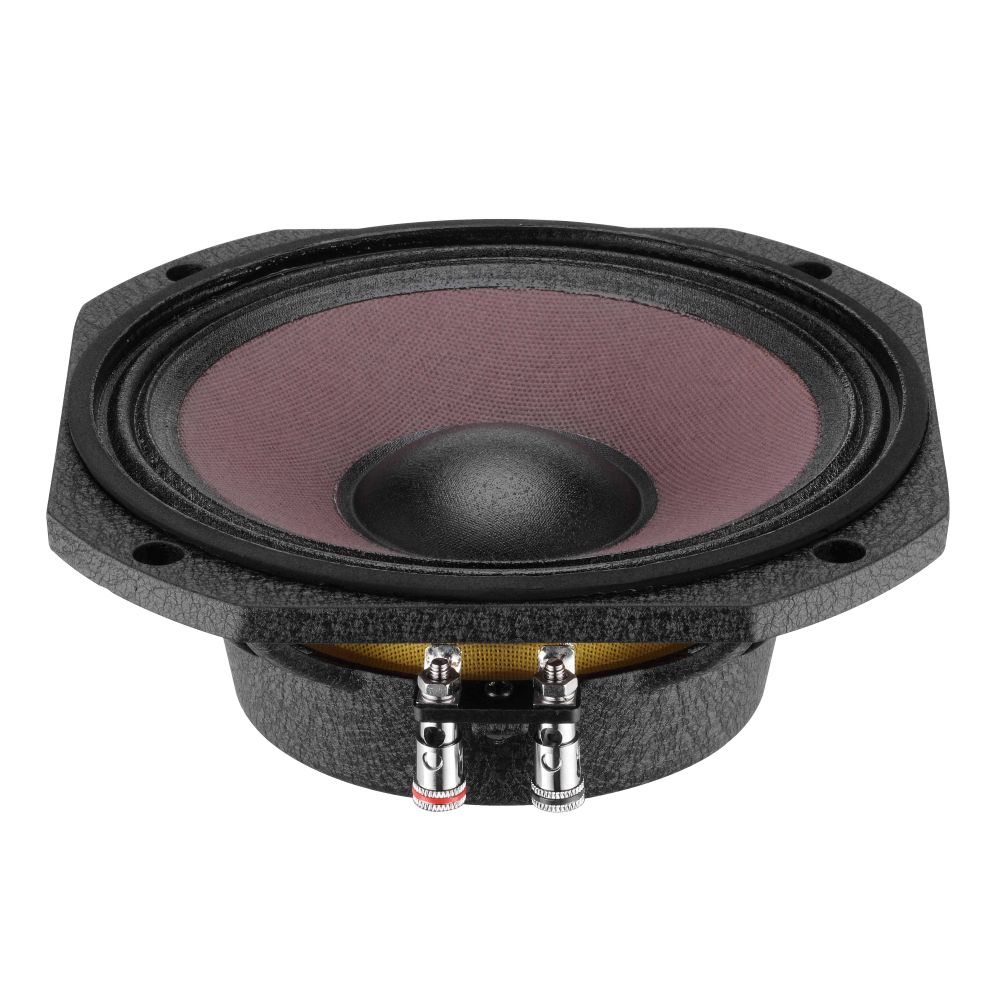

This high-performance square midrange speaker is built for professional car audio systems, delivering clear, dynamic, and natural sound. It comes with a 1.5 inch voice coil, N35H strong magnet, and 200W power handling, ensuring low distortion and excellent reliability even at high output.The square design greatly improves installation flexibility, perfectly fitting narrow spaces such as A pillars and door panels. When arrayed, it creates a clean, symmetrical, and premium look that enhances the vehicle’s interior style. Tuned at 96Hz resonance frequency, it integrates smoothly with mid woofers and tweeters for a balanced soundstage. The strong magnetic circuit provides precise control, fast transients, dense vocals, and detailed musical reproduction.

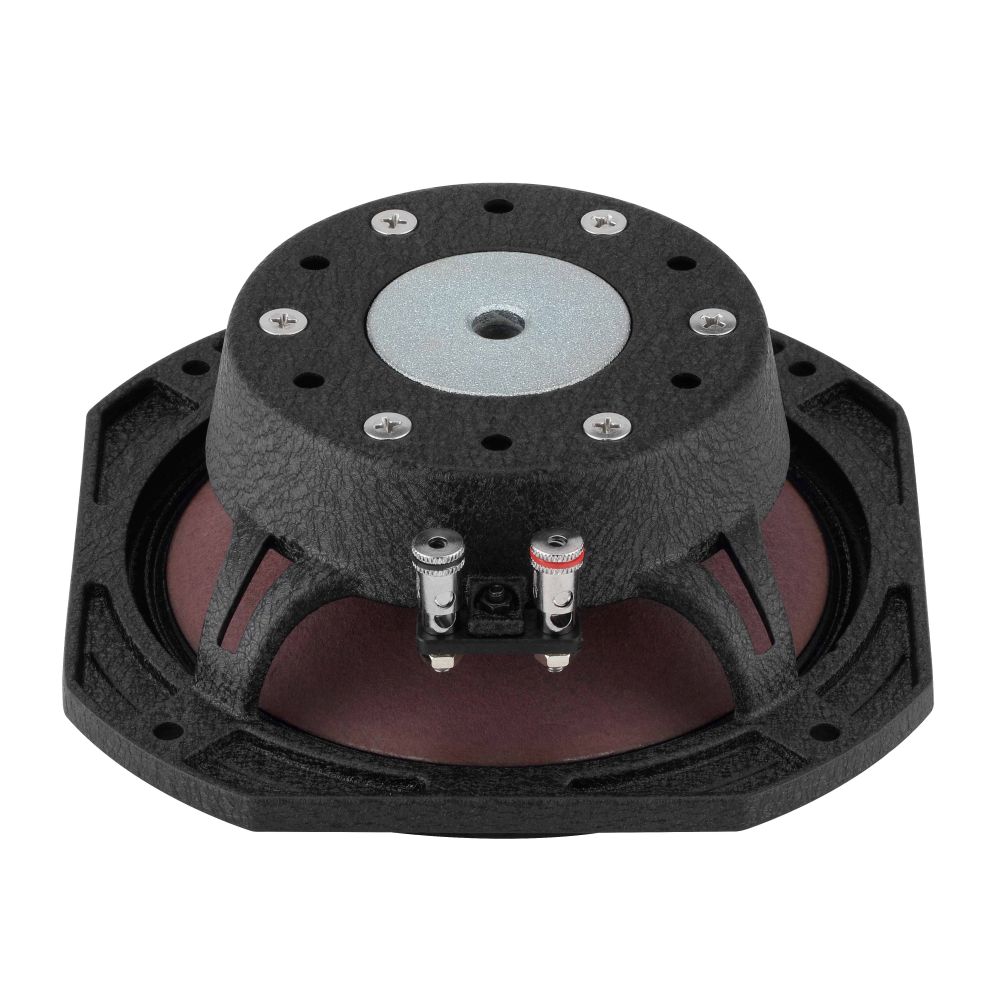

Its optimized open basket design ensures efficient heat dissipation and stable performance. Combining durability, great sound, flexible installation, and modern aesthetics, this speaker is an ideal choice for audiophiles pursuing accurate and enjoyable in-car audio.
MRL-6NSP   / 6.5" MIDRANGE NEO LOUD SPEAKERPRICE
PicturesGeneral Data / Specifications



Overall Dimensions6.5inch
Nominal Power Handing / RMS200W
Maximum Power400W
Sensitivity 102dB
Frequency Response90-11.2KHz
Dust Cap Paper\
Cone Material Paper cone + Cloth Edge\
Basket  MaterilSteel\
Electrical Data
Nominal Impedance4OHMS
DC Resistance3.2OHMS
Voice Coil and Magnet Parameters
Voice Coil Diameter 38.3mm
Winding  Material CCAW\
Voice Coil BobbinGlass Fiber\
Magnet System Type Neodymium\
Magnet Size90*45*6N35H
Magnet Weigth20Oz
Washer Size / T yoke Size Thickness8mm
Thiele & Small Parameters
Equivilant Volume5.108 LVAS
Free Air Resonance 96 HzFS
Mechanical Factor5.341Qms
Electrical Factor0.461Qes
Total Factor0.425Qts
Mechanical Mass 9.711Mms
BL Factor\BL
Cone Area\Sd
