HAWK-H12.4V/H10.4V
HAWK-H12.4V/H10.4V

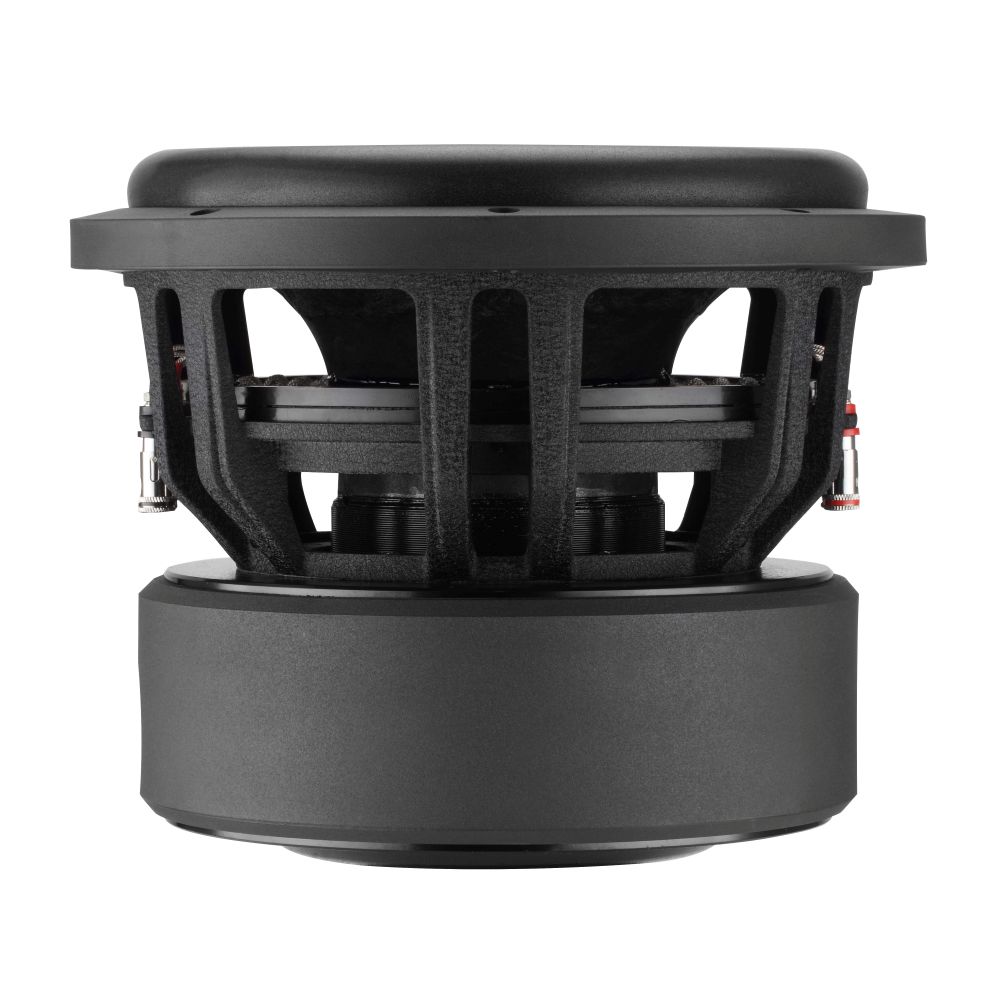

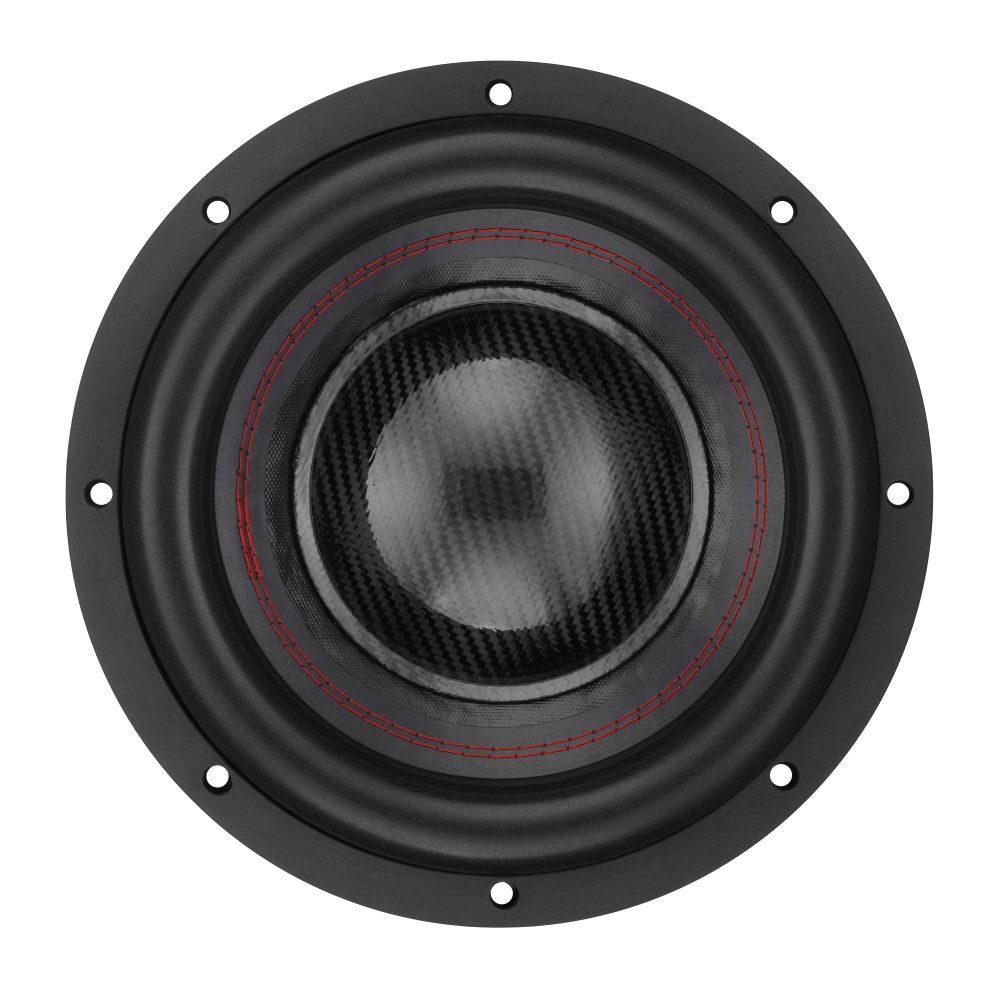

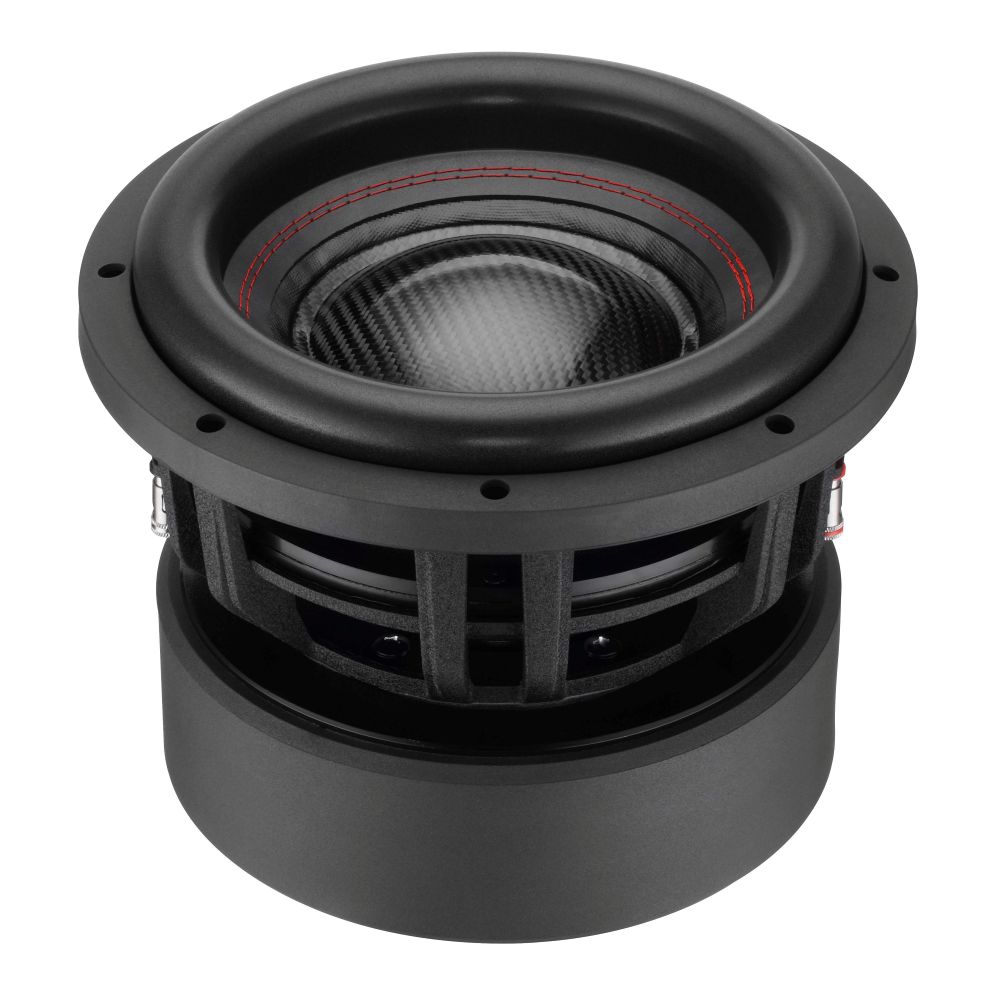

| HAWK-H12.4V / 12" SUPER SUBWOOFER LOUD SPEAKER | PRICE | ||
| Pictures | General Data / Specifications | ||
| Overall Dimensions | 12 | inch |
| Nominal Power Handing / RMS | 3000 | W | |
| Maximum Power | 6000 | W | |
| Sensitivity | 85.2 | dB | |
| Frequency Response | 45-3.6K | Hz | |
| Dust Cap | Carbon Fiber | \ | |
| Cone Material | Paper cone + Foam Edge | \ | |
| Basket Materil | Steel | \ | |
| Electrical Data | |||
| Nominal Impedance | 4 | OHMS | |
| DC Resistance | 3.2 | OHMS | |
| Voice Coil and Magnet Parameters | |||
| Voice Coil Diameter | 99.8 | mm | |
| Winding Material | CCAW | \ | |
| Voice Coil Bobbin | Glass Fiber | \ | |
| Magnet System Type | Ferrite | \ | |
| Magnet Size | 114oz*3pcs | Y30 | |
| Magnet Weigth | 342 | Oz | |
| Washer Size / T yoke Size Thickness | 8 | mm | |
| Thiele & Small Parameters | |||
| Equivilant Volume | 46.775 L | VAS | |
| Free Air Resonance | 44.5Hz | FS | |
| Mechanical Factor | 7.621 | Qms | |
| Electrical Factor | 1.961 | Qes | |
| Total Factor | 1.559 | Qts | |
| Mechanical Mass | \ | Mms | |
| BL Factor | \ | BL | |
| Cone Area | 530.93 | Sd | |
