MI-SUBNEO15C
MI-SUBNEO15C
| MI-SUBNEO15C / 15" NEO SUBWOOFER LOUD SPEAKER | PRICE | ||

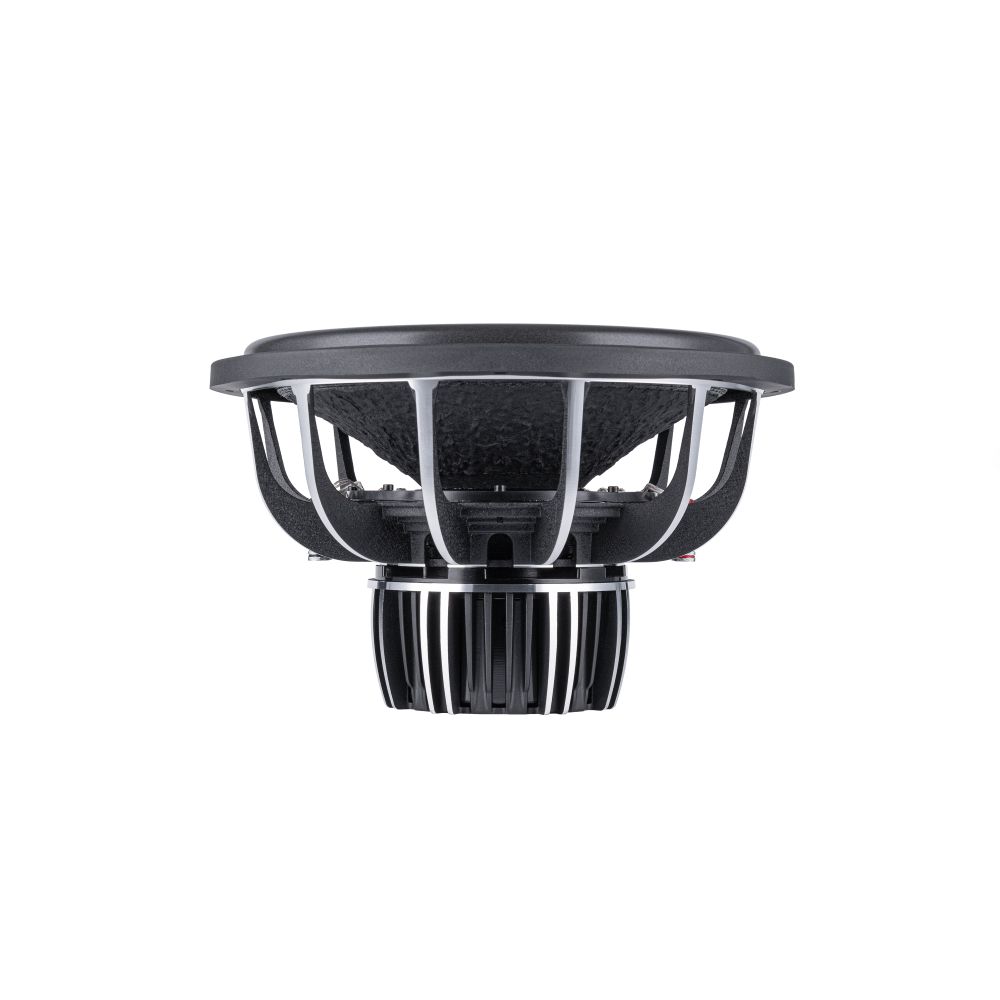

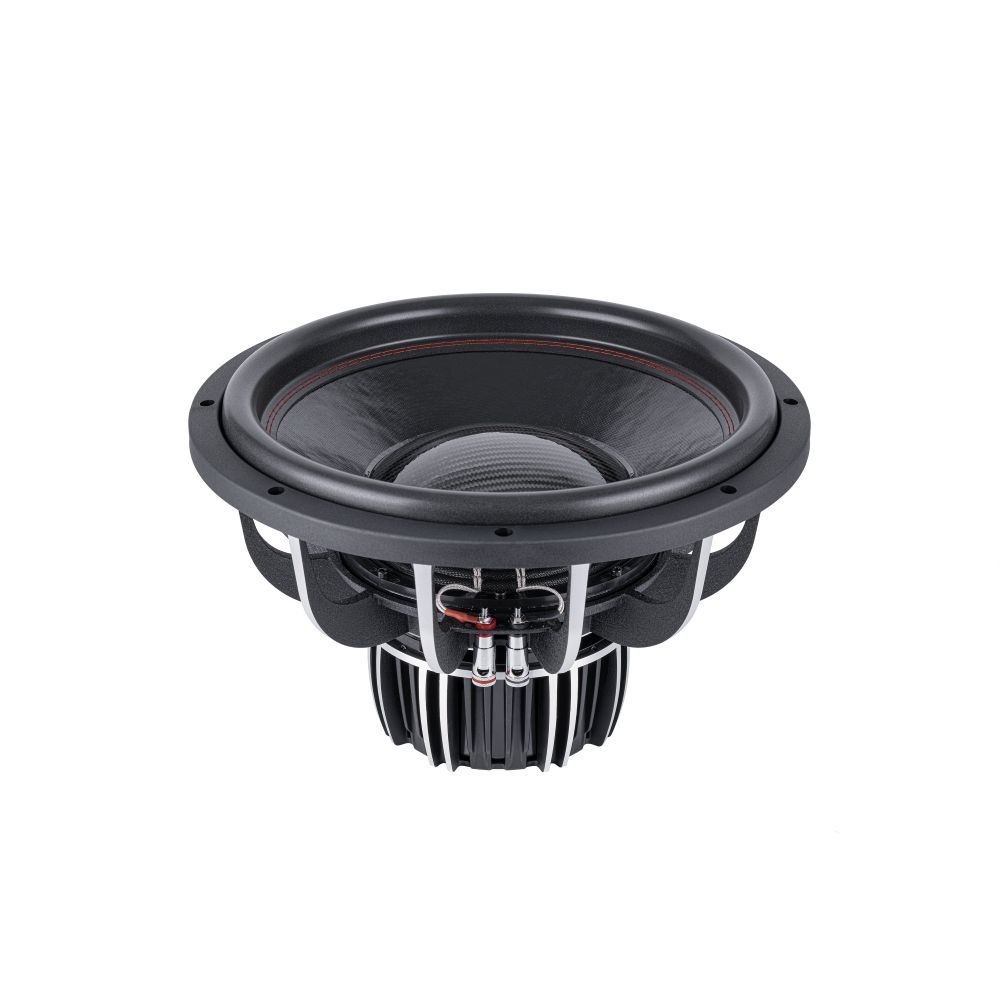

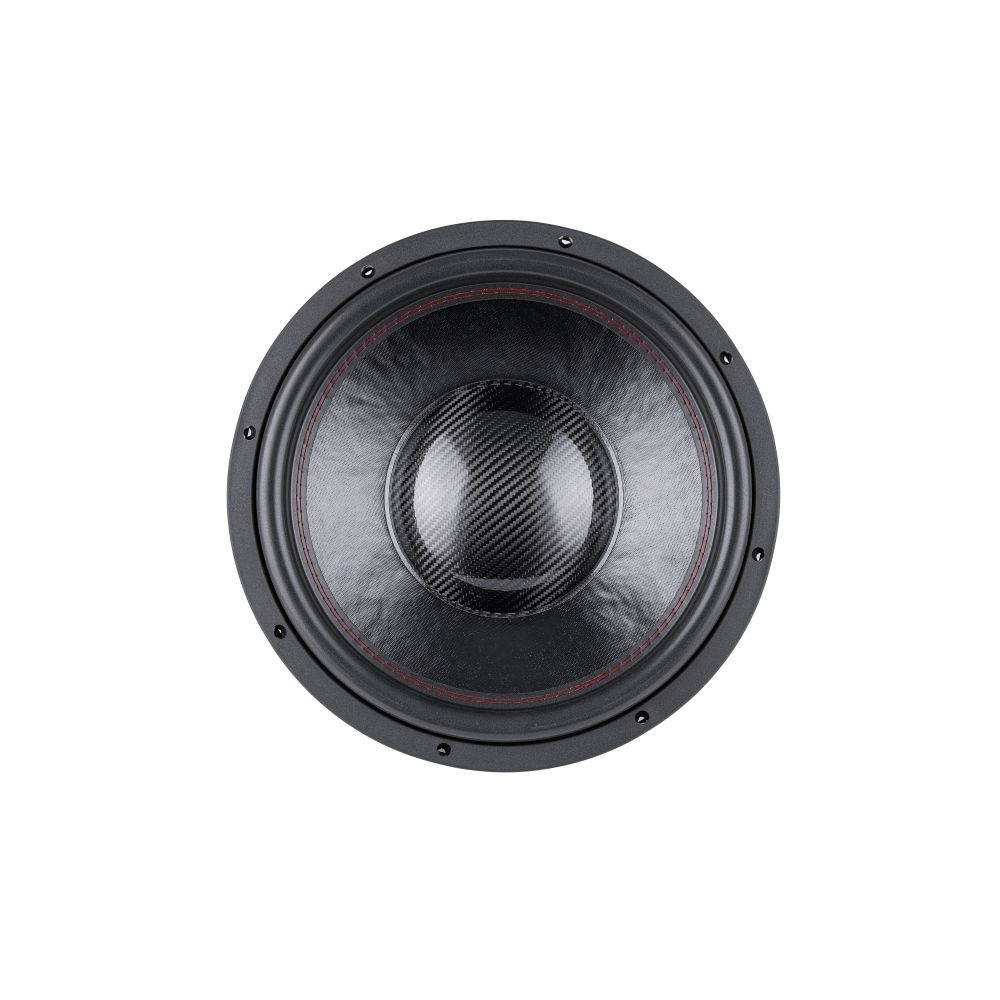

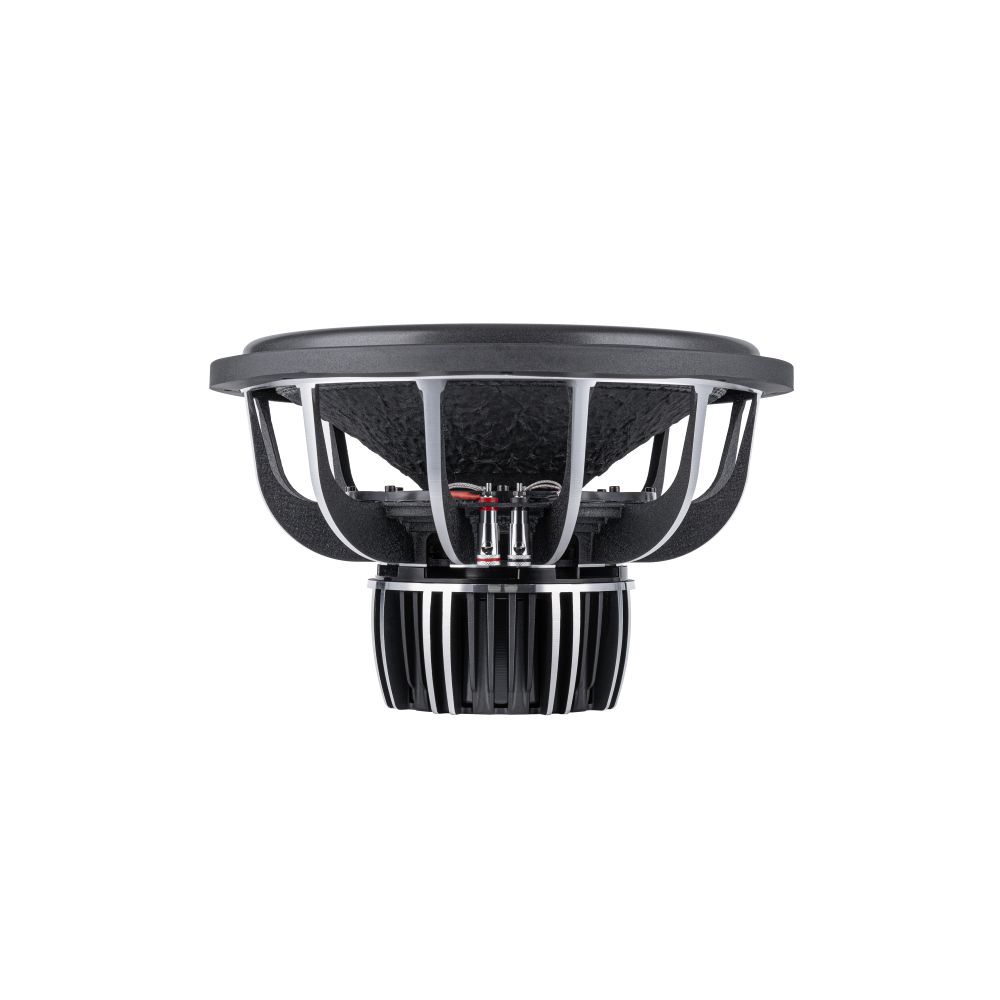

| Pictures | General Data / Specifications | ||
| Overall Dimensions | 15 | inch |
| Nominal Power Handing / RMS | 1000 | W | |
| Maximum Power | 2000 | W | |
| Sensitivity | 90.2 | dB | |
| Frequency Response | 60-4.2K | Hz | |
| Dust Cap | Paper | \ | |
| Cone Material | Paper cone + Rubber Edge | \ | |
| Basket Materil | Steel | \ | |
| Electrical Data | |||
| Nominal Impedance | 4 | OHMS | |
| DC Resistance | 3.2 | OHMS | |
| Voice Coil and Magnet Parameters | |||
| Voice Coil Diameter | 61.1 | mm | |
| Winding Material | CCAW | \ | |
| Voice Coil Bobbin | Glass Fiber | \ | |
| Magnet System Type | Ferrite | \ | |
| Magnet Size | 156*25*2pcs | Y30 | |
| Magnet Weigth | 20 | Oz | |
| Washer Size / T yoke Size Thickness | 8 | mm | |
| Thiele & Small Parameters | |||
| Equivilant Volume | 23.808 L | VAS | |
| Free Air Resonance | 39.1 Hz | FS | |
| Mechanical Factor | 7.565 | Qms | |
| Electrical Factor | 0.886 | Qes | |
| Total Factor | 0.793 | Qts | |
| Mechanical Mass | 291.903 | Mms | |
| BL Factor | 11.6977 | BL | |
| Cone Area | 530.93 | Sd | |
