FE-SL65B NEO
FE-SL65B NEO

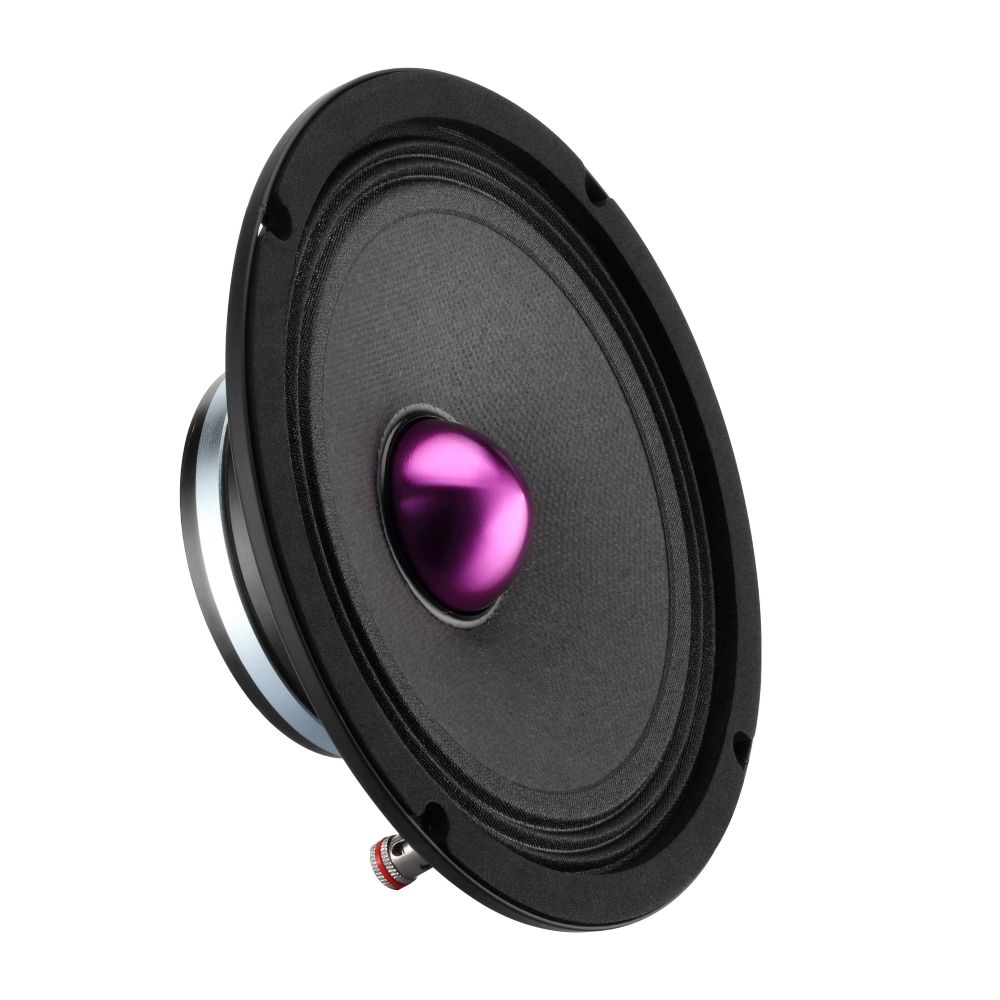

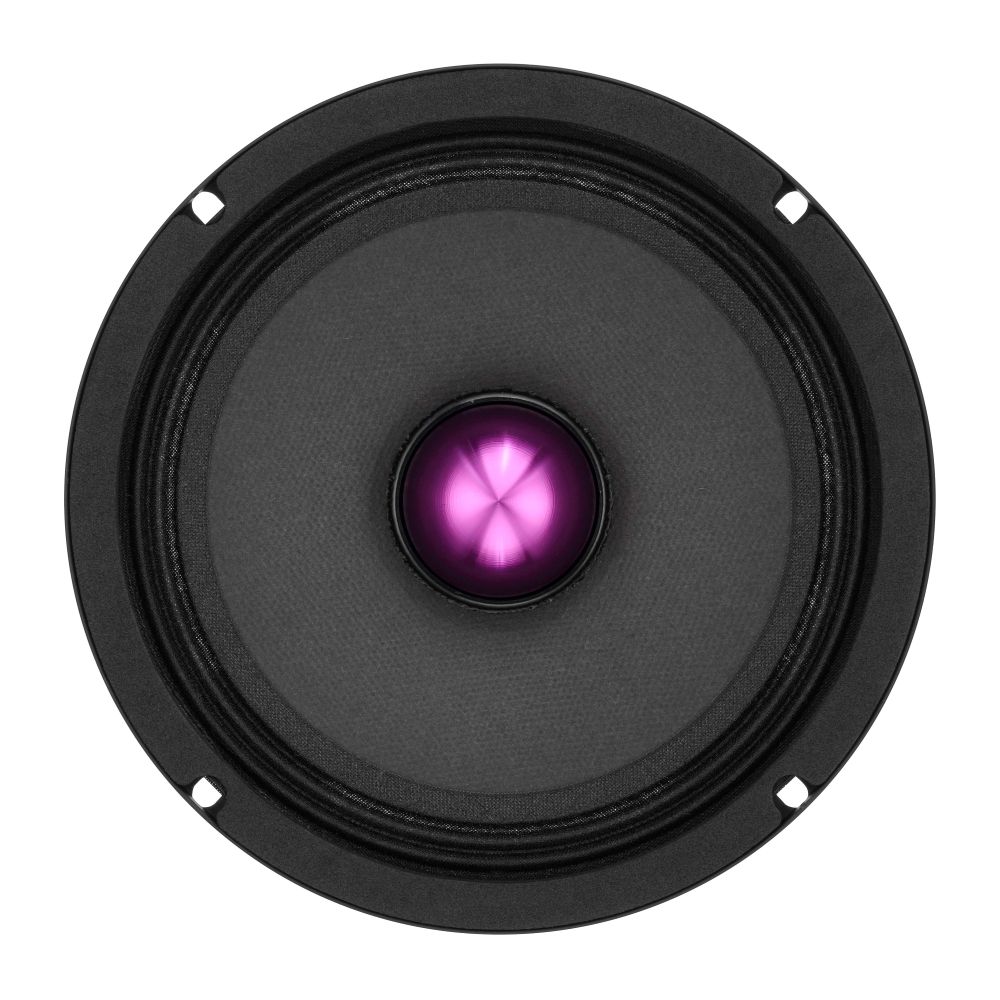

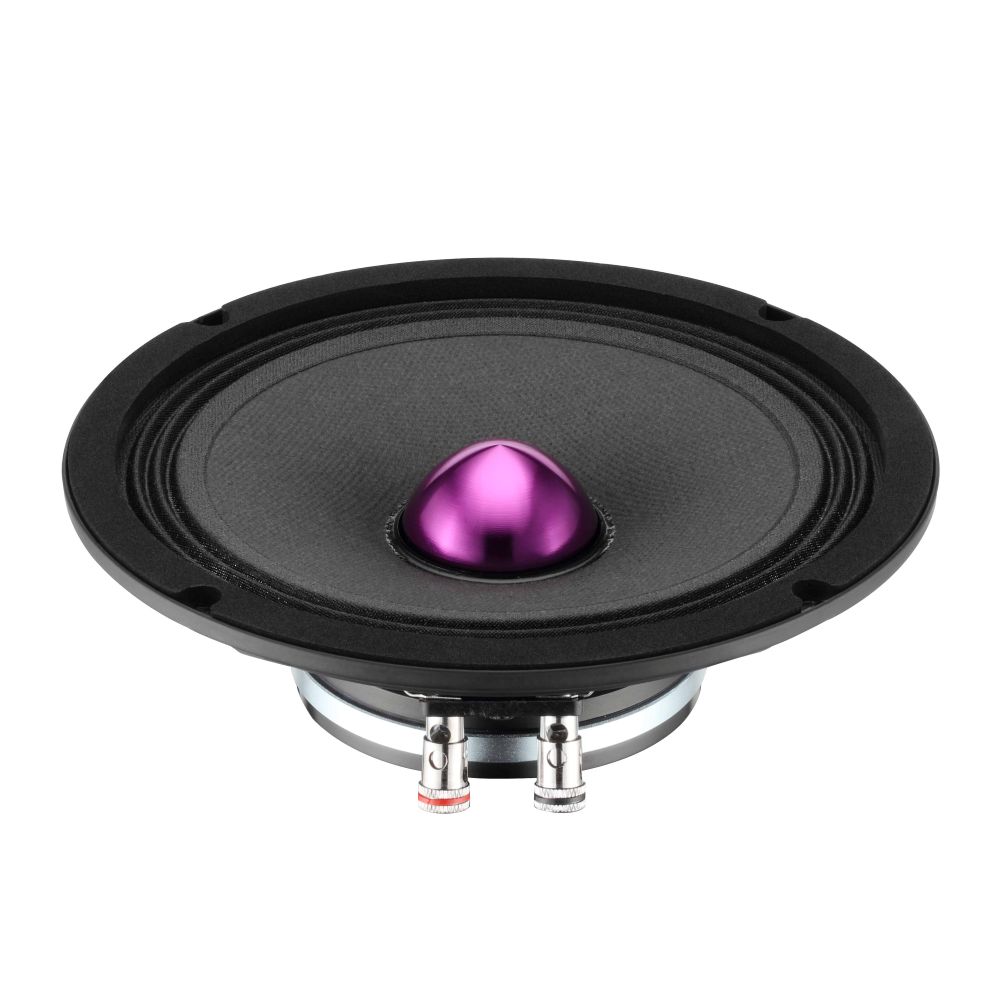

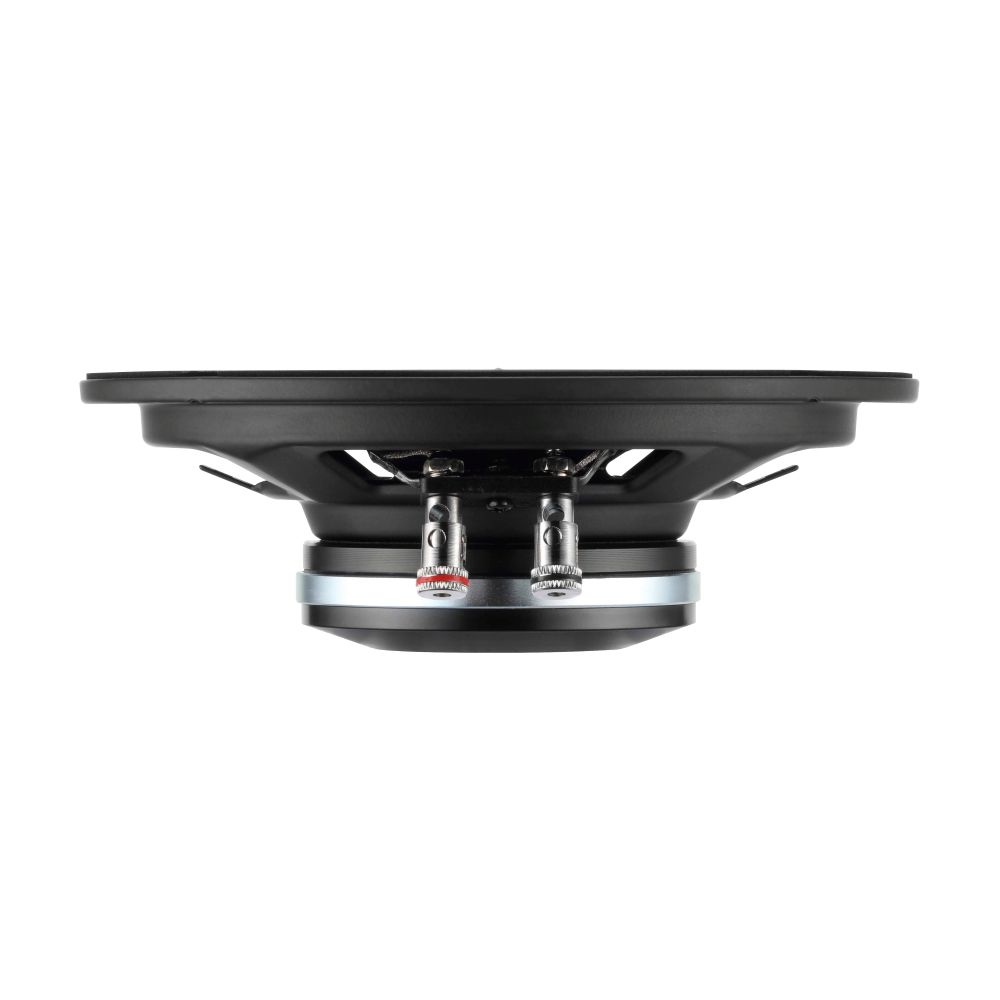

| FE-SL65B NEO / 6.5" MIDRANGE BULLET CAP LOUD SPEAKER | PRICE | ||
| Pictures | General Data / Specifications | ||
| Overall Dimensions | 6.5 | inch |
| Nominal Power Handing / RMS | 150 | W | |
| 300Maximum Power | 400 | W | |
| Sensitivity | 96 | dB | |
| Frequency Response | 75-10.5K | Hz | |
| Dust Cap | Aluminum | \ | |
| Cone Material | Paper cone + Cloth Edge | \ | |
| Basket Materil | Steel | \ | |
| Electrical Data | |||
| Nominal Impedance | 4 | OHMS | |
| DC Resistance | 3.2 | OHMS | |
| Voice Coil and Magnet Parameters | |||
| Voice Coil Diameter | 38.3 | mm | |
| Winding Material | CCAW | \ | |
| Voice Coil Bobbin | Kapton | \ | |
| Magnet System Type | Neodymium | \ | |
| Magnet Size | 80*45*6 | N35H | |
| Magnet Weigth | 20 | Oz | |
| Washer Size / T yoke Size Thickness | 8 | mm | |
| Thiele & Small Parameters | |||
| Equivilant Volume | 3.235 L | VAS | |
| Free Air Resonance | 140 Hz | FS | |
| Mechanical Factor | 2.395 | Qms | |
| Electrical Factor | 0.623 | Qes | |
| Total Factor | 0.439 | Qts | |
| Mechanical Mass | 7.205 | Mms | |
| BL Factor | \ | BL | |
| Cone Area | \ | Sd | |
