MPG-AM650

Car Speaker > 6.5inch > MPG-AM650

MPG-AM650

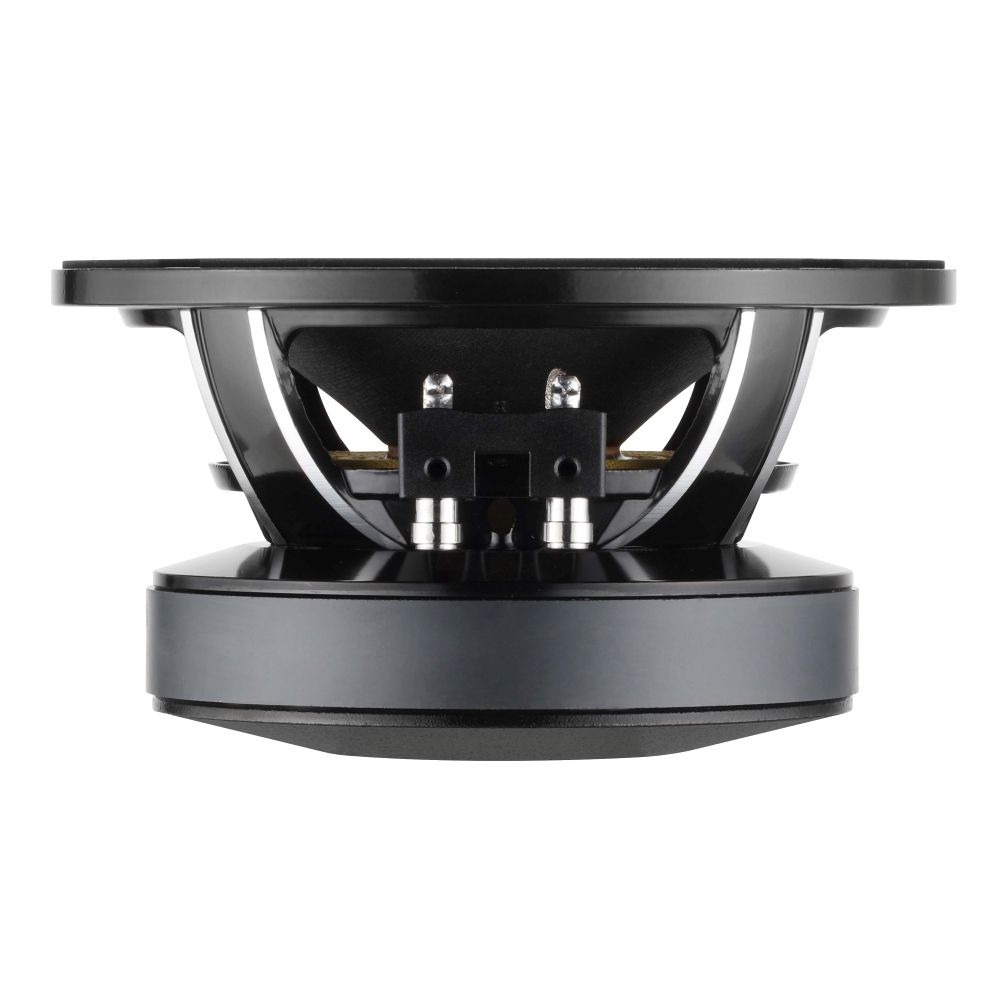

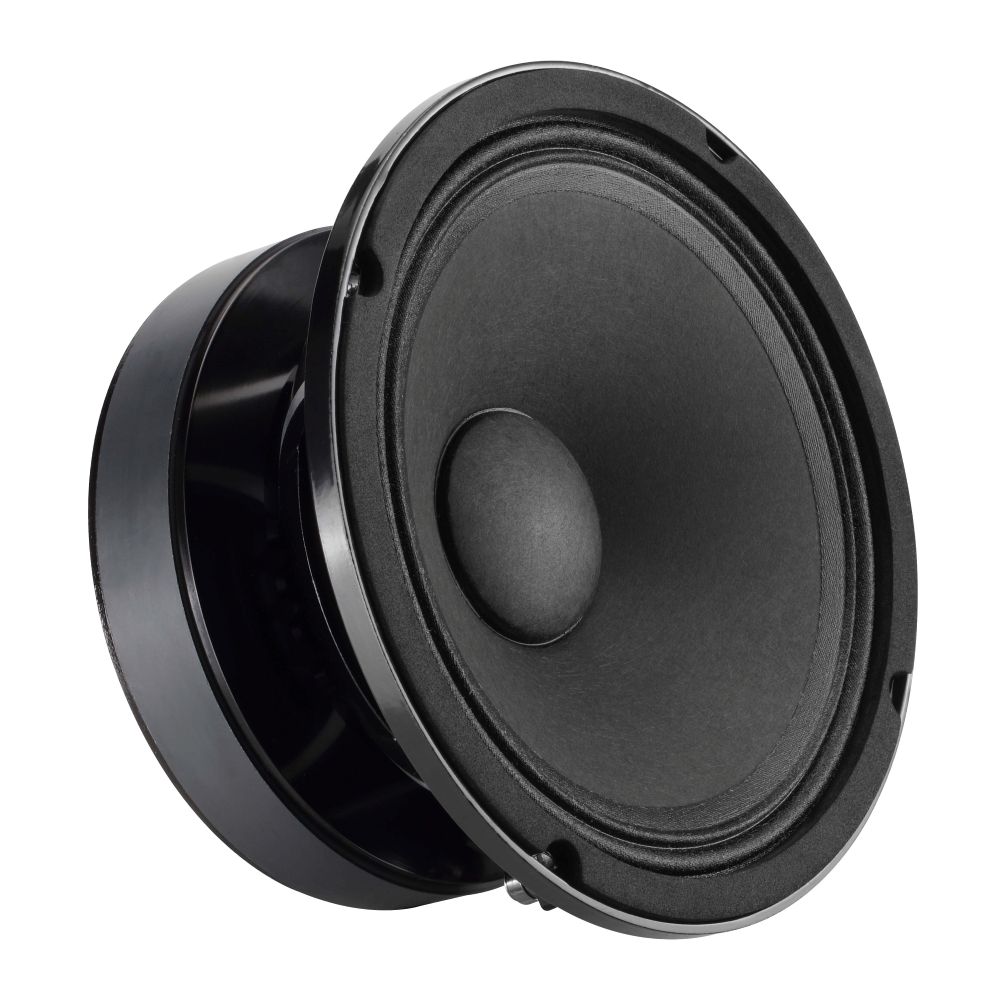

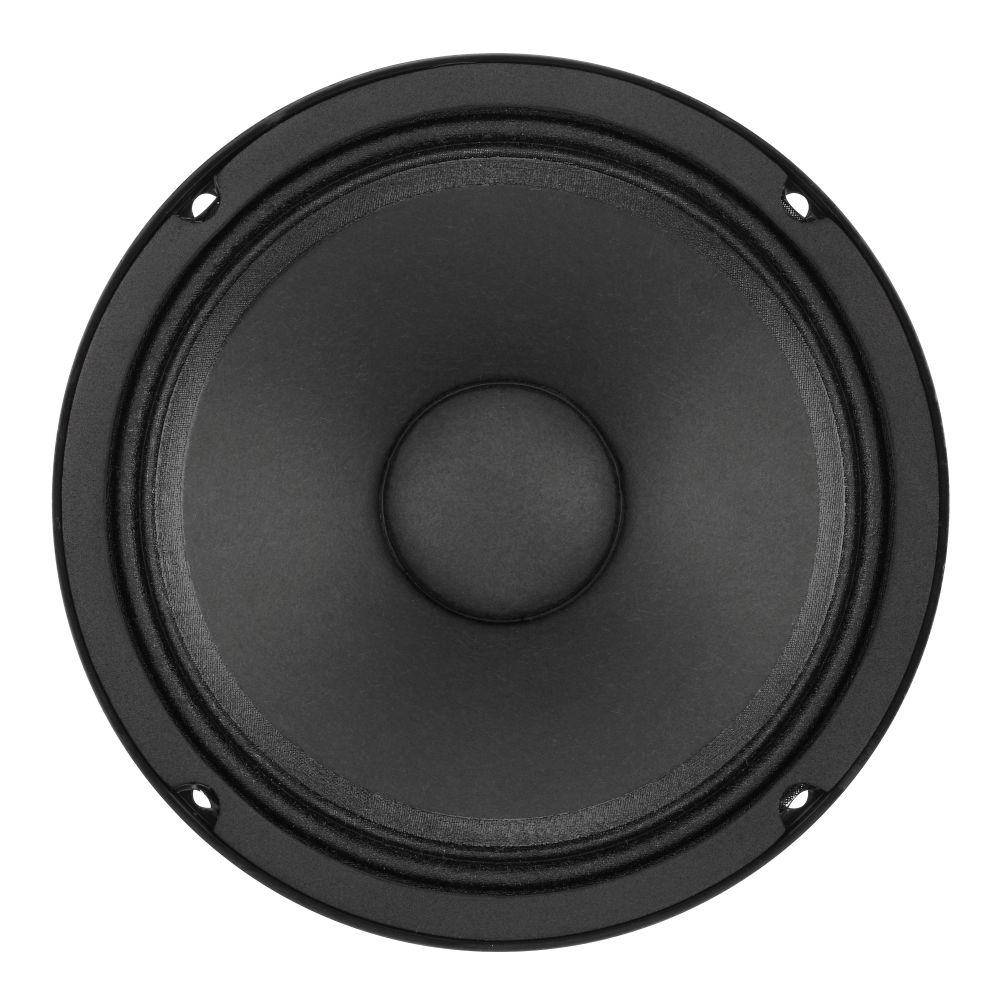

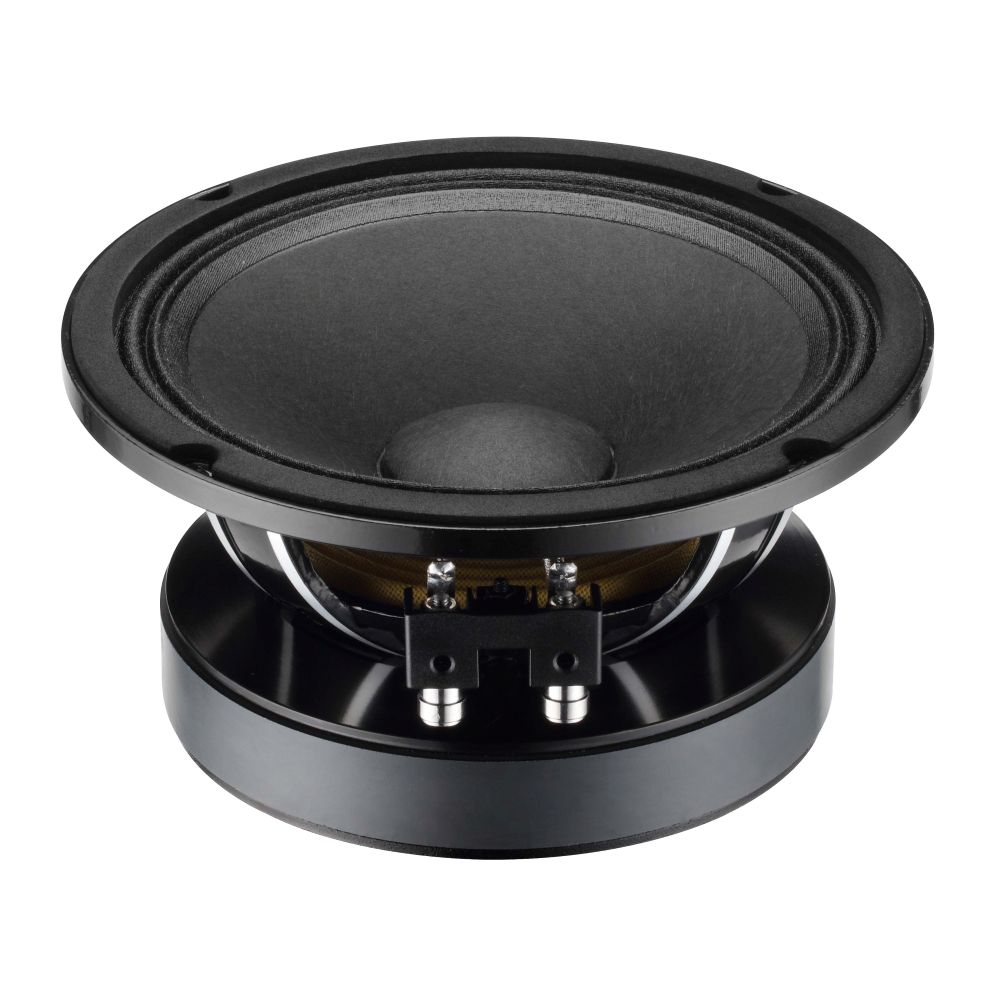

This is a mid-to-high-end ferrite magnet midrange speaker. Unlike some of the entry-level models we recommended before, it features a larger magnet and a larger voice coil, which translates to greater power. Internally, we've minimized the magnetic gap, the distance between the magnet, voice coil, and T-York,which achieve higher magnetic density and sensitivity. This speaker is suitable for most scenarios, demonstrating its advantages in both low-power loudness performance and high-power tolerance. Its only disadvantage is its weight due to the added big magnet. Therefore, we used an aluminum basket to reduce weight to some extent and make it more sturdy.
Of course, it also has many customizable parts, such as the anodized basket from last time(MI-AOR-SPV80N. If you've already passed the beginner stage, this will be an excellent product for those looking to advance.
MPG-AM650 / 6.5" MIDRANGE NEO LOUD SPEAKERPRICE
PicturesGeneral Data / Specifications





Overall Dimensions6.5inch
Nominal Power Handing / RMS250W
Maximum Power500W
Sensitivity 99.1dB
Frequency Response105-14.5KHz
Dust Cap Paper\
Cone Material Paper cone + Cloth Edge\
Basket  MaterilSteel\
Electrical Data
Nominal Impedance4OHMS
DC Resistance3.2OHMS
Voice Coil and Magnet Parameters
Voice Coil Diameter 38.3mm
Winding  Material CCAW\
Voice Coil BobbinKapton\
Magnet System Type Neodymium\
Magnet Size100*45*10N35H
Magnet Weigth3.8Oz
Washer Size / T yoke Size Thickness\mm
Thiele & Small Parameters
Equivilant Volume8.082LVAS
Free Air Resonance 129 HzFS
Mechanical Factor1.279Qms
Electrical Factor0.379Qes
Total Factor0.292Qts
Mechanical Mass 7.025Mms
BL Factor\BL
