MI-SPS65N
MI-SPS65N
| MI-SPS65N / 6.5" MIDRANGE NEO LOUD SPEAKER | PRICE | ||

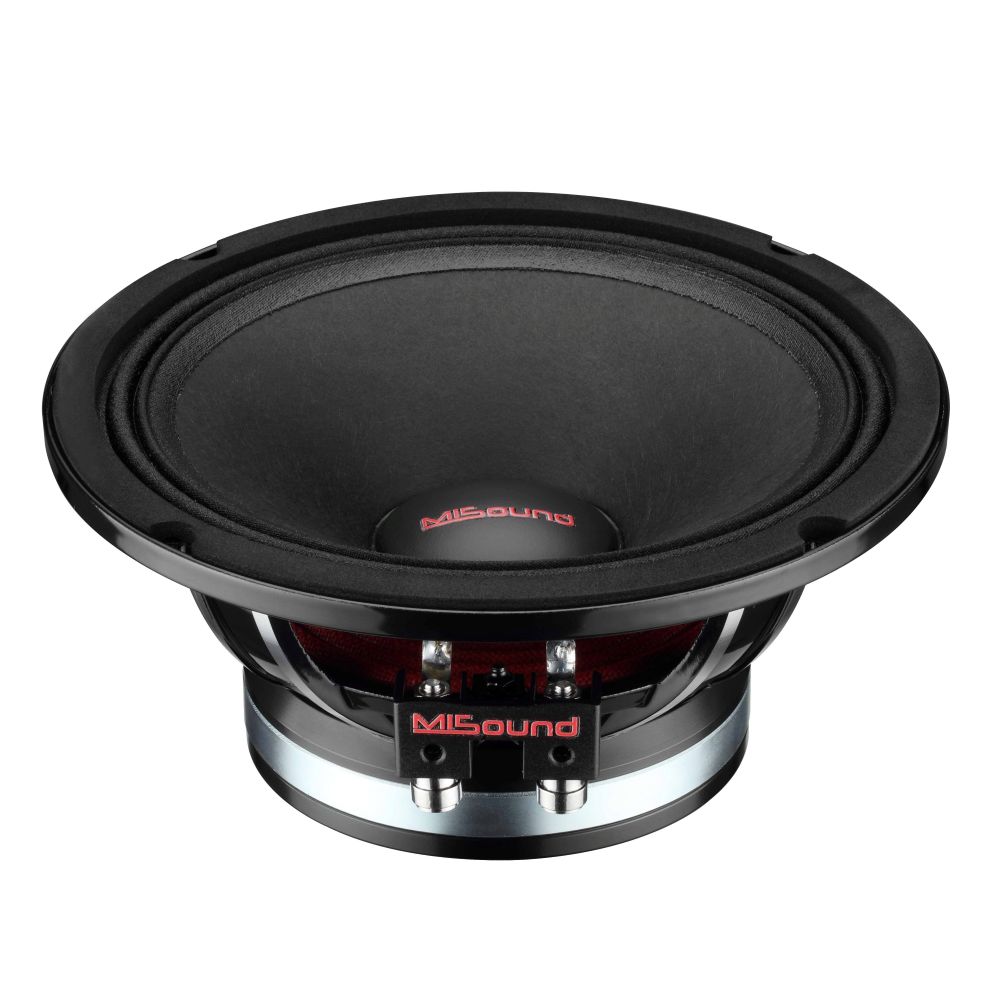

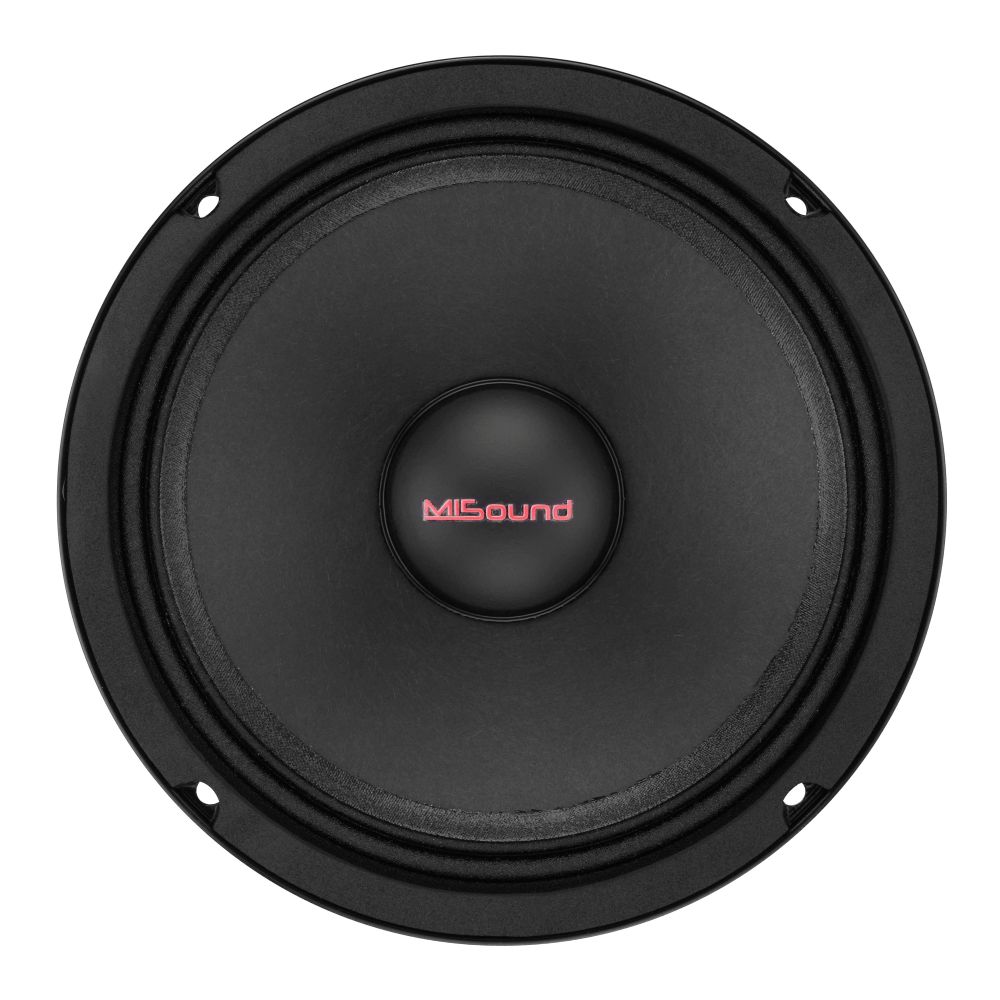

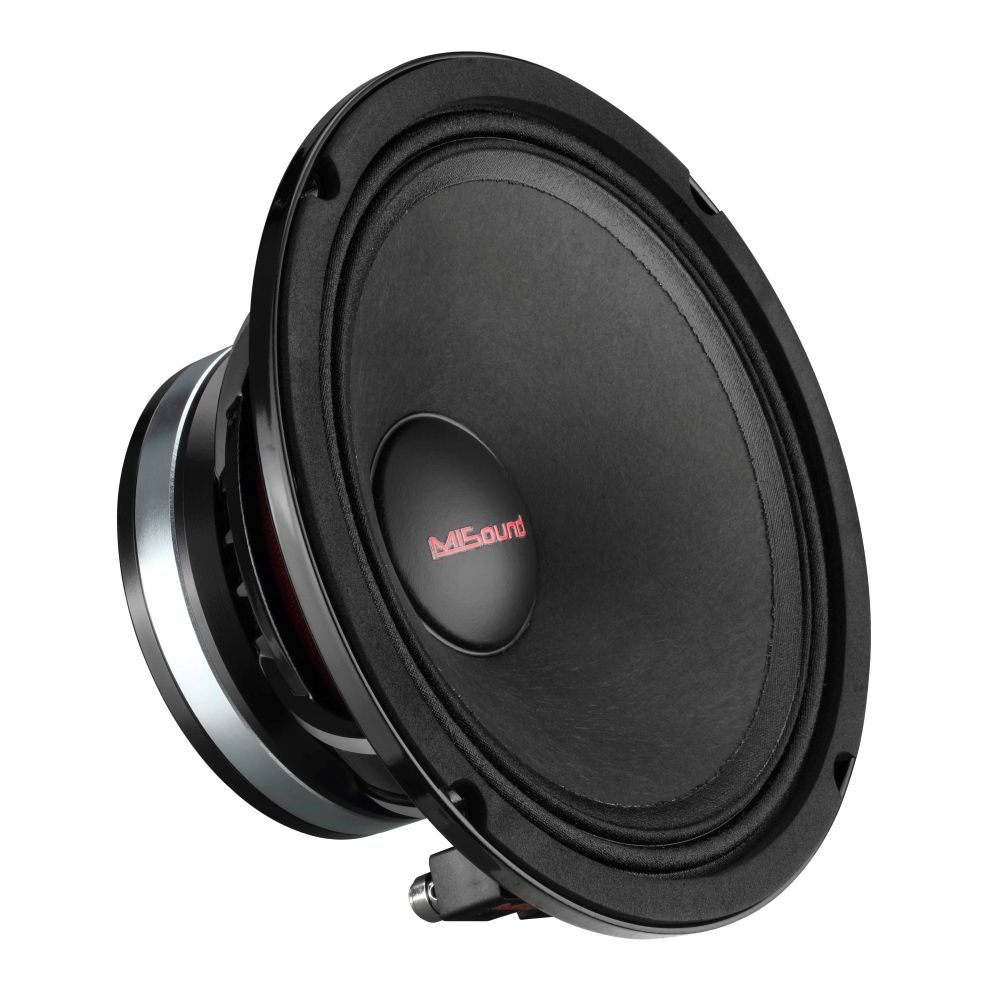

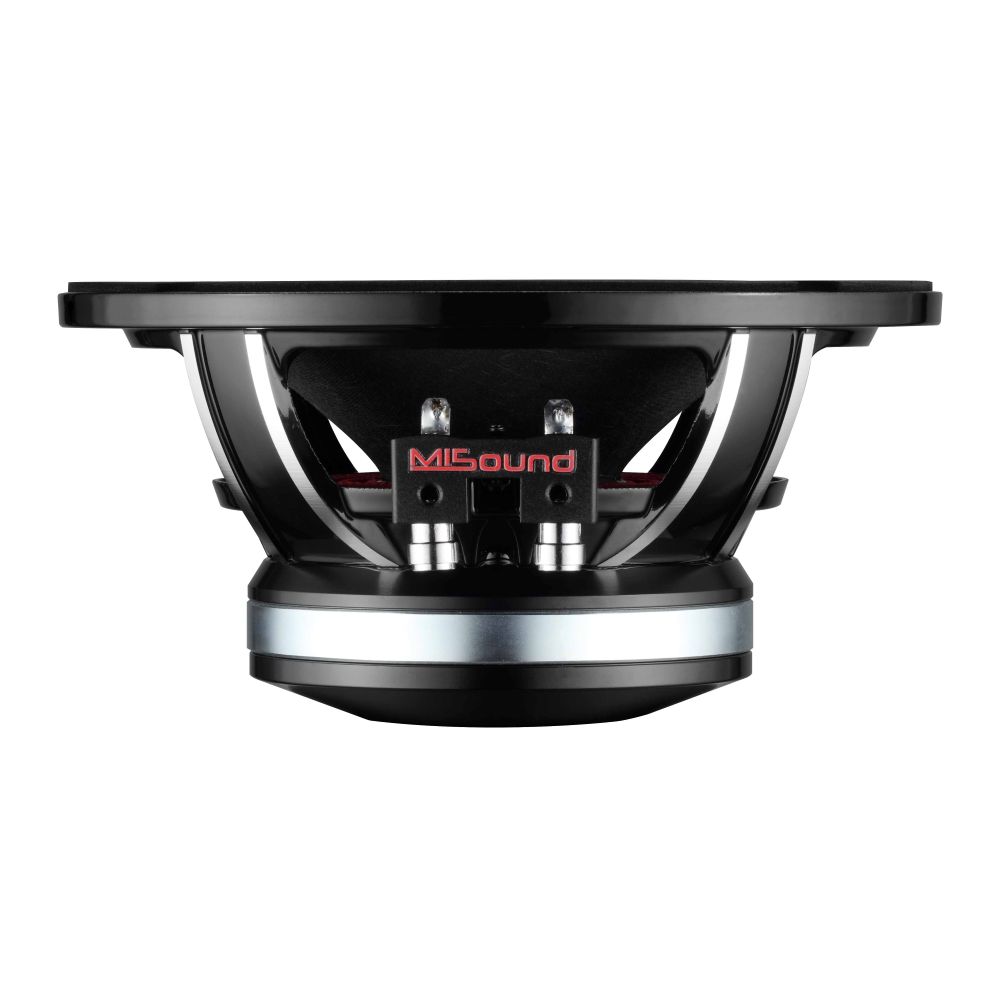

| Pictures | General Data / Specifications | ||
| Overall Dimensions | 6.5 | inch |
| Nominal Power Handing / RMS | 200 | W | |
| Maximum Power | 400 | W | |
| Sensitivity | 99.9 | dB | |
| Frequency Response | 75-14K | Hz | |
| Dust Cap | Paper | \ | |
| Cone Material | Paper cone + Cloth Edge | \ | |
| Basket Materil | Steel | \ | |
| Electrical Data | |||
| Nominal Impedance | 4 | OHMS | |
| DC Resistance | 3.2 | OHMS | |
| Voice Coil and Magnet Parameters | |||
| Voice Coil Diameter | 38.3 | mm | |
| Winding Material | CCAW | \ | |
| Voice Coil Bobbin | Kapton | \ | |
| Magnet System Type | Neodymium | \ | |
| Magnet Size | 100*45*10 | N35H | |
| Magnet Weigth | 3.8 | Oz | |
| Washer Size / T yoke Size Thickness | \ | mm | |
| Thiele & Small Parameters | |||
| Equivilant Volume | 5.306 L | VAS | |
| Free Air Resonance | 395 Hz | FS | |
| Mechanical Factor | 4.419 | Qms | |
| Electrical Factor | 0.995 | Qes | |
| Total Factor | 0.812 | Qts | |
| Mechanical Mass | 3.446 | Mms | |
| BL Factor | 5.306 | BL | |
